High-Performance VHF UHF Stacked Dipole Antenna 30-512MHz

Antenna Experts manufacture omni-directional stacked dipole antenna for 30-66MHz, 75MHz (66-88MHz), 150MHz (134-174MHz), 250MHz (220-290MHz) 350MHz (320-400MHz), and 450MHz (400-512MHz) frequency bands with 3 dBd, 6dBd. 9 dBd. and 12 dBd. gain. The SD series high performance VHF/UHF exposed open stacked dipole arrays are designed for use with highly populated radio sites requiring long haul omni directional coverage. Exposed stacked dipole array are available in combination of 2 dipoles, 4 dipoles and 8 dipoles. Discover high-performance SD series VHF/UHF exposed stacked dipole arrays. Operating from 30-512MHz with 3 to 12 dBd gain for long-haul omni-directional coverage.

As a premier manufacturer and exporter, Antenna Experts specializes in engineering top-tier high gain stacked dipole antennas designed for mission-critical RF communications. A stacked dipole array is a highly efficient antenna configuration created by arranging multiple individual dipole elements vertically along a centralized support mast. While a standard half-wave dipole is a foundational tool in RF technology, vertically stacking and feeding several of them in phase fundamentally transforms and elevates their performance.

Base Station Stacked Dipole Antenna for TETRA & SCADA

The SD series heavy duty stacked dipole array features, wide bandwidth, high gain, high power handling capacity, low VSWR, low noise performance and null filling coverage with omni directional characteristics which are highly suitable for TETRA and SCADA applications. Our SD series ultra high performance stacked dipole array are designed for use with highly populated radio sites requiring long haul omni-directional coverage. The SD series antenna are heavy duty stacked dipole array features, wide bandwidth, high gain, high power handling capacity, low VSWR, low noise performance and null filling coverage with omni-directional characteristics.

These stacked dipole array maintains constant gain and VSWR over its specified bandwidth, making it highly suitable as base station antennas for repeater, paging and any other multi-channel communication systems. The radiation pattern can be changed in the field by use of common hand tools. The Vertical stacking distance of stacked dipole antenna are factory adjusted for highest possible efficiency. Specially designed center fed phasing harness of exposed dipole antennas ensures equal and in phase signal distribution to all the dipoles. All the SD series high gain exposed stacked dipole array operates at D.C. ground for protection against lightning. Deploy ultra-reliable stacked dipole antennas for TETRA, SCADA, repeaters, and paging systems. Experience high gain, low noise, and null-filling coverage.

Heavy-Duty Stacked Dipole Antenna Lightning Protected

The stacked dipole array uses 6063T6 ultra corrosion resistant architectural anodized aluminum, consists of number of folded dipoles stacked vertically, fed in phase. The center fed dipole ends and cable connections to the dipoles are sealed in epoxy at the end of the boom for protection against weather and imparting rigidity and strength to the dipoles structure. All the fasteners are made of marine grade SS. The central mast for mounting the dipoles is shipped in two/four sections of equal length for easy of shipping. The dipoles are mounted on a tubular boom made of high strength aluminum alloy, which offers a low resistance discharge path against any lightning strike during the stormy weather. The N-Female termination of antenna sealed in flame retardant heat shrinking tube ensures complete waterproofing. The antenna can be supplied with or without central mast.

Antenna Experts manufactured SD series Stacked Dipole Antenna for higher gain and higher power broadcasting applications. SD series stacked dipole array is manufactured using 6063T6 ultra corrosion resistant architectural anodized aluminum alloy. Powder coating of the complete antenna provides extra protection against corrosion in saline weather present in coastal areas. The SD series stacked dipole array is heavy duty features, wide bandwidth, high gain, high power handling capacity, low VSWR, low noise performance and null filling coverage with omni-directional characteristics. This stacked dipole array is highly suitable as base station antennas vertical polarized wave. Built to survive extreme environments with 6063T6 anodized aluminum, epoxy-sealed connections, and D.C. ground lightning protection. Ideal for coastal areas.

Field-Adjustable Stacked Dipole Arrays  2, 4 & 8 Dipoles

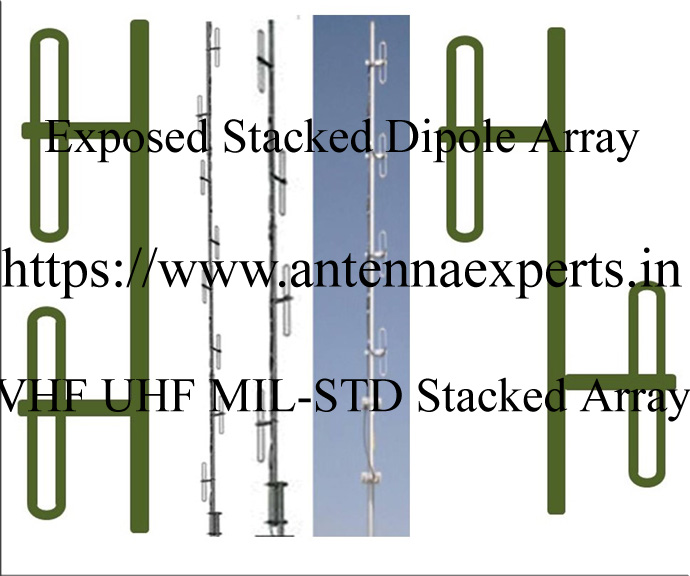

The SD series Stacked Dipole Array consists of two/four/eight folded dipoles stacked vertically, fed in phase. These Stacked Dipole Antennas operates at D.C. ground for protection against lightning. The stacked dipole antenna is suitable to mount on the top of tower and is supplied with two marine grade stainless steel mounting brackets. When the two/four/eight dipoles are arranged 180/90 degrees apart around the central mast, an omni-directional radiation pattern results. Aligning the two/four dipoles collinearly (facing in one direction) an offset radiation pattern is obtained. The radiation pattern can be changed in the field by use of common hand tools.

Beyond rugged durability, the SD series offers unmatched deployment flexibility. The antenna’s radiation pattern can be easily modified in the field using common hand tools. By arranging the dipoles 180 or 90 degrees apart around the central mast, operators achieve a true omni-directional radiation pattern. Alternatively, aligning the dipoles collinearly yields a focused offset radiation pattern, making this an incredibly versatile solution for tower-top mounting in higher gain and broadcasting applications. Easily change your radiation pattern from omni-directional to offset in the field. Available in 2, 4, and 8 folded dipole configurations with center-fed phasing.
